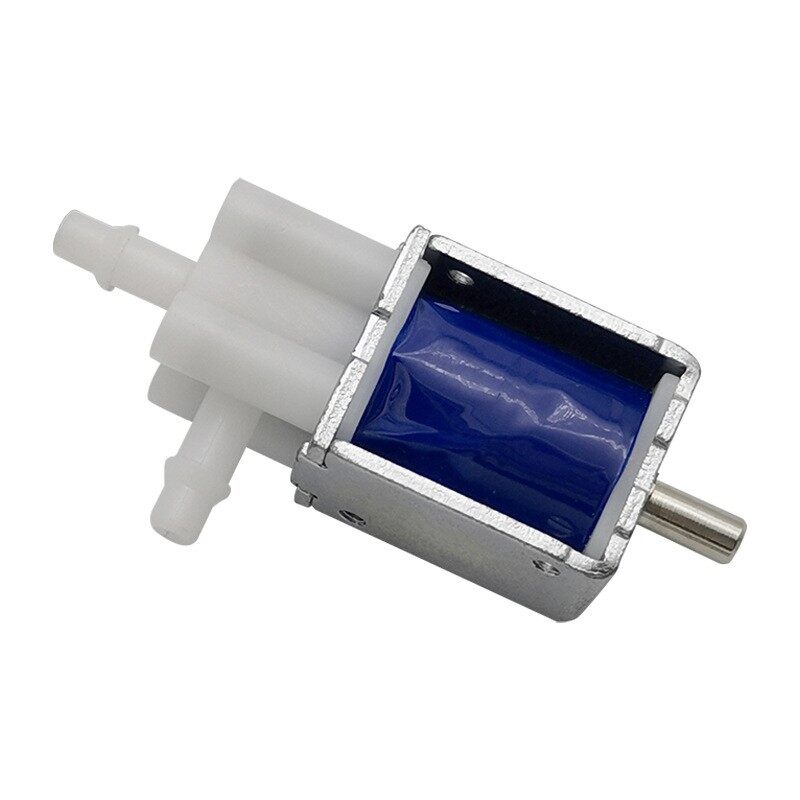

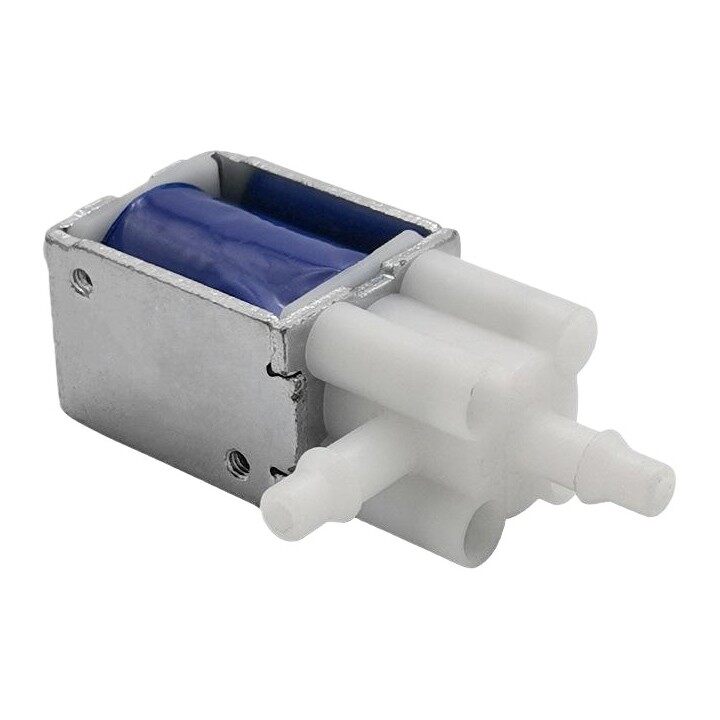

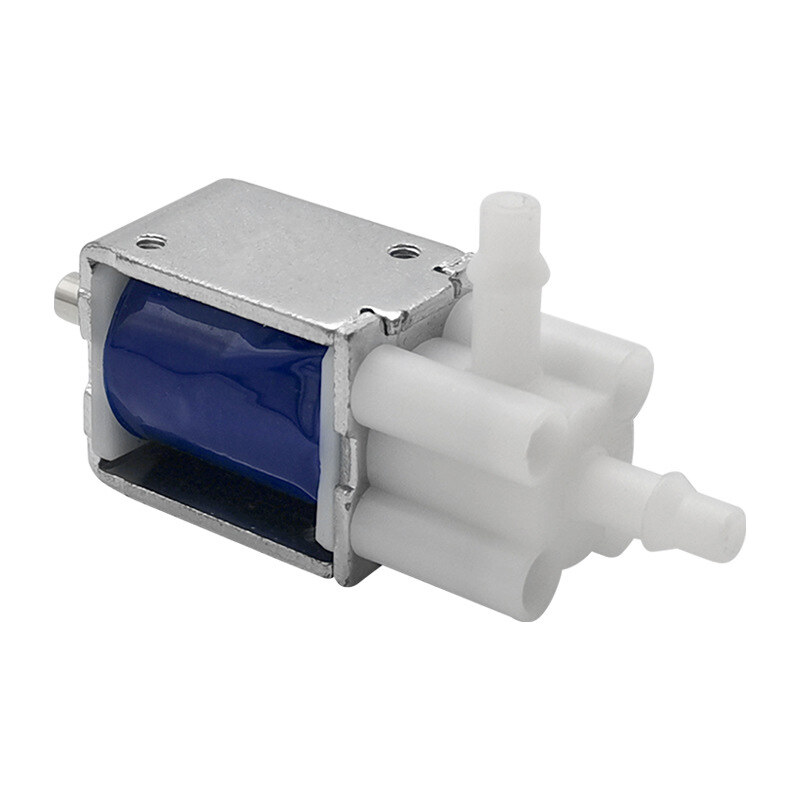

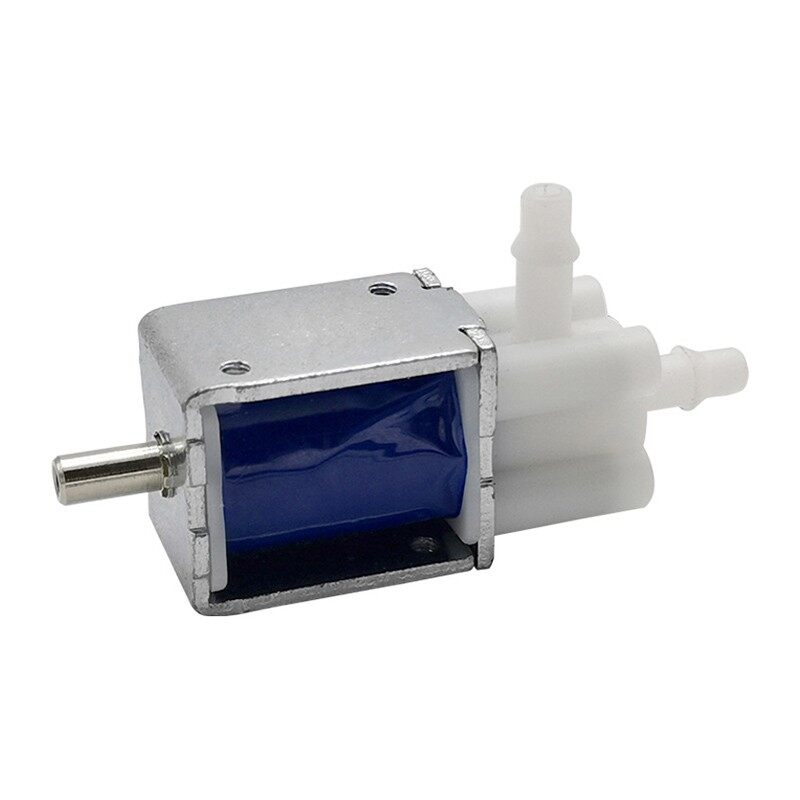

Pincheng Factory's PYF3-XN three-way solenoid valve delivers exceptional performance in oxygen concentrator and vacuum system applications. This versatile 24v Mini solenoid valve provides reliable gas control with 40kPa maximum pressure capacity while maintaining compact dimensions.
Engineered as a Low Power Consumption Micro Solenoid Valve, it achieves efficient operation at just 2.88W, ensuring energy-saving performance across its 200,000-cycle lifespan. The valve demonstrates excellent sealing capability with less than 3mmHg/min leakage and rapid response times under 4 seconds. Designed as a practical normally closed mini air solenoid valve solution, it offers dependable performance in medical equipment and industrial automation systems. Pincheng supports comprehensive customization services for OEM clients, providing tailored solutions for specific voltage requirements and connector configurations to meet diverse application needs in pneumatic control systems.
Dimension
| Product Model | PYF3-XN | |||
| Rated Voltage | DC 6V | DC 12V | DC 24V | |
| Rated Current | 200 ± 10%mA | 120 ± 10%mA | 120 ± 10%mA | |
| DC Resistance | 30 ± 10%Ω | 100 ± 10%Ω | 200 ± 10%Ω | |
| Power | 1.2 W | 1.44 W | 2.88 W | |
| Air Tap O.D. | Ø5.6mm | |||
| Maximum Pressure | 40KPa(300mmHg) | |||
| Medium | Air | |||
| Exhaust Speed | < 4s (from 300 to 15 mmHg in a 500cc tank) | |||
| Life Test | ≥ 200,000 Times (ON 5s, OFF 5s) | |||
| Leakage | <3mmHg/min under 300 mmHg in a 500cc tank | |||
| Operation Temperature | 0 ~50°C 30% to 85%RH | |||
| Type | Normally Opened | |||
| Weight | 42g | |||
Description
Pincheng Factory presents the PYF3-XN, a high-performance 24v Mini solenoid valve engineered specifically for medical and industrial gas control applications. This versatile three-way valve serves as an ideal Mini Solenoid Valve for Oxygen systems, providing reliable switching between pressure and vacuum functions in oxygen concentrators and respiratory equipment. With excellent sealing performance (<3mmHg/min leakage) and rapid response time (<4s), this component ensures precise gas management for critical medical applications.
Designed as a compact normally closed mini air solenoid valve, the PYF3-XN offers dependable performance in vacuum packaging systems, cosmetic instruments, and pneumatic control applications. Its robust construction guarantees exceptional durability with a lifespan exceeding 200,000 cycles, while handling maximum pressures of 40kPa. The valve's energy-efficient operation (2.88W at 24V) makes it suitable for continuous-duty medical equipment and portable oxygen concentrator valves.
Pincheng Factory provides comprehensive customization services for OEM clients, offering tailored solutions for custom medical solenoid valves and specialized gas control components. Our engineering team works directly with manufacturers to develop precision three-way valves for oxygen therapy equipment and vacuum release valves for industrial applications. With extensive experience in miniature solenoid valve manufacturing, we ensure each component meets the stringent requirements of medical device and industrial automation applications. Trust Pincheng for reliable, high-quality solenoid solutions that enhance your product's performance and reliability in demanding gas control environments
How To Select Proper Micro Solenoid Air Valve 24v For Pneumatic Systems?
Selecting the proper 24V micro solenoid air valve for your pneumatic system requires balancing technical requirements with practical application needs. Start by evaluating your operating parameters - consider the pressure range (typically 0-40 kPa for most micro valves), flow requirements, and response time needed for your specific application.
The valve type matters significantly - choose between normally closed or normally open configurations based on your safety requirements. For medical equipment like oxygen concentrators or industrial automation, reliability is crucial, so look for valves rated for 200,000+ cycles. Power consumption is another key factor - modern micro solenoid valves should operate efficiently at 2-3W while maintaining optimal performance.
Don't overlook physical constraints - measure your available space carefully as micro valves are designed for compact systems. Connection types and port sizes must match your existing tubing. Finally, partner with experienced manufacturers who can provide custom solutions and technical support. The right valve should not only meet your specifications but also offer energy efficiency, easy integration, and long-term reliability for your pneumatic applications.
