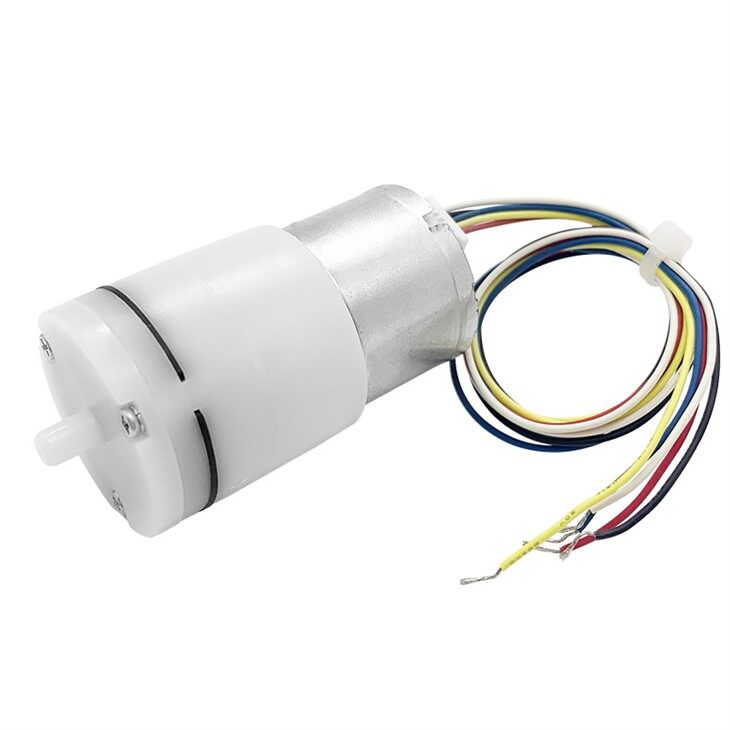

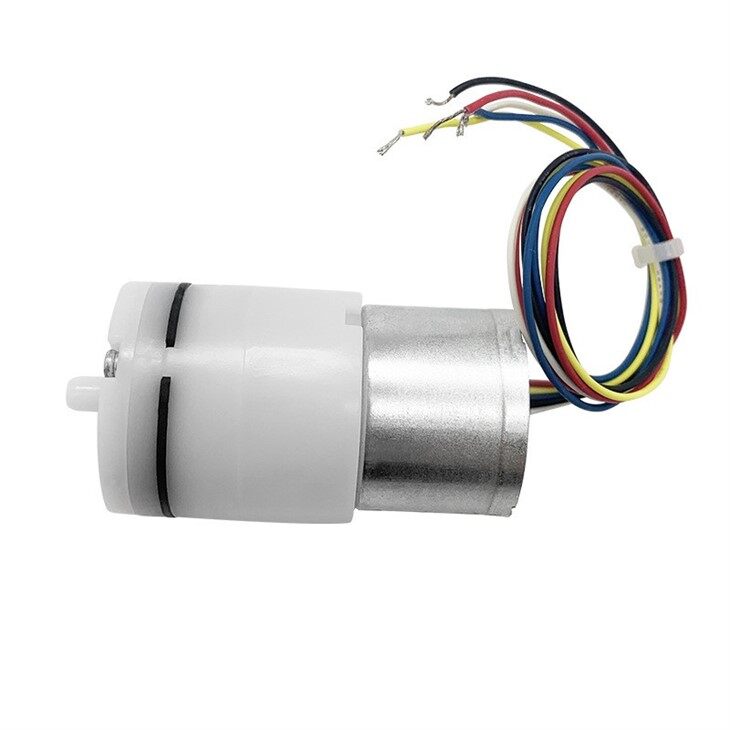

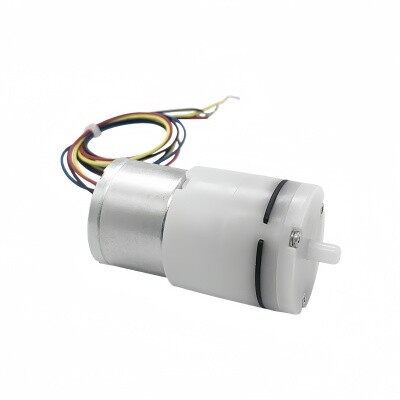

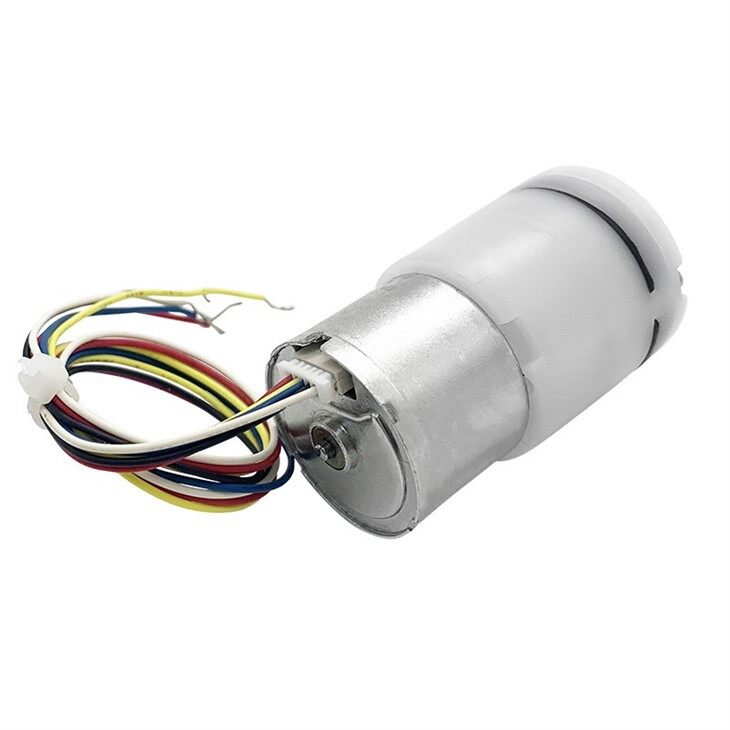

Why Choose Our 310 brushless micro air pump?
Upgrade to the 310 pompa air brushless 12v for a high-performance, industrial-grade solution.
Powered by advanced Brushless DC (BLDC) technology, this series offers five key advantages:
10X Extended Service Life, Whisper-Quiet & EMI-Clean, Intelligent PWM Precision,
Cool & High-Efficiency Performance, Ultra-Compact Powerhouse.
Products Specifications
| Product model |
310XA-Brushless DC air pump |
||||
|---|---|---|---|---|---|
| Rated Voltage | DC 3V | DC 6V | DC 9V | DC 12V | |
| Rated Current | ≤800mA | ≤400mA | ≤260mA | ≤200mA | |
| Power | 2.4 W | 2.4 W | 2.4 W | 2.4 W | |
| Air Tap O.D. | Ø4.3mm | ||||
| Airflow | 0.5-3.0 LPM | ||||
| Maximum Pressure | ≥60KPA(450mmHg) | ||||
| Inflation Time | <10s(From 0 to 300mmHg in a 500cc tank) | ||||
| Life Test | ≥50,000Times(ON for 10 seconds, OFF for 5 seconds) | ||||
| Noise Level | ≤60db(30cm away) | ||||
| Leakage | <3.0mmHg/min(from 300mmHg in a 500cc tank) | ||||
| Weight | 36g | ||||
Key Applications
Combining a compact footprint and medical-grade silence with precise digital control and an ultra-long lifespan, our 310 Brushless high pressure micro air pump has become the trusted solution for four key high-tech industries:
-
Medical & Health Monitoring
- Portable Patient Monitors
- Massage & Recovery Devices
- IVD - In Vitro Diagnostics
-
Environmental&Safety Analysis
- Air Quality Detectors.
- Industrial Flue Gas Sampling
- Portable Gas Leak Detectors
-
High-end Consumer & Personal Care
- Luxury Scent Delivery
- Aesthetic Equipment
-
Industrial Automation & Labs
- Micro Vacuum Grippers
- Fuel Cell Gas Supply
FAQ
01. Is the pump quiet enough for medical or office use?
A：Yes. When designing this pump, we eliminated the physical friction caused by carbon brushes, as a result, its operating noise is significantly lower than that of standard miniature pumps, and it runs much more smoothly.
02.Can we customize connection cables based on our specific device interfaces?
A：Certainly. We can customize the wire length and color according to your requirements, as well as match connectors (terminals) from specific brands, ensuring that the product is ready for immediate installation and use upon receipt.
03. How long for a custom sample? What is the mass production time?
04. What should I do if I need to transport special corrosive gases?
