Why choose our micro diaphragm air pump?
Custom Micro Air Pump Solutions for Massage Chair Manufacturers
Stable Airflow
for Airbag Inflation
A massage chair air pump uses a motor to drive the diaphragm back and forth. This movement draws air into the pump chamber and pushes it into the airbag system, so the airbags can inflate and deflate in a controlled rhythm.

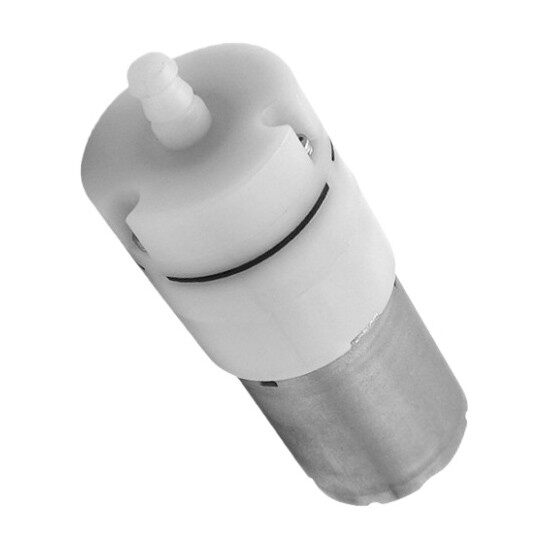

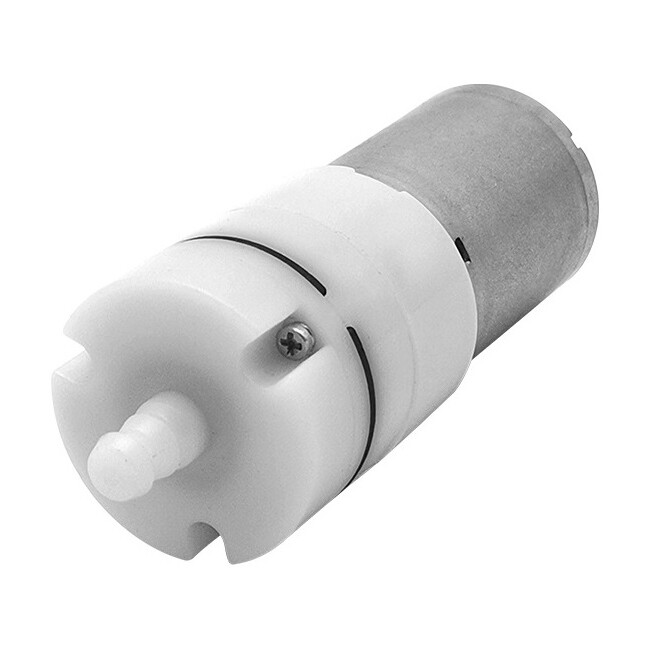

Barbed Outlet
for Tube Connection
During repeated air compression, the tube may loosen if the connection is not stable. The barbed outlet increases grip between the pump outlet and the tube, helping reduce air leakage and pressure loss in the massage chair.
Easy Integration for
OEM Massage Equipment
This micro air pump for massage chair works by creating airflow through a compact diaphragm structure. It can be installed inside massage chairs, leg massagers, and pneumatic massage systems to supply air for airbag movement without taking up much internal space.

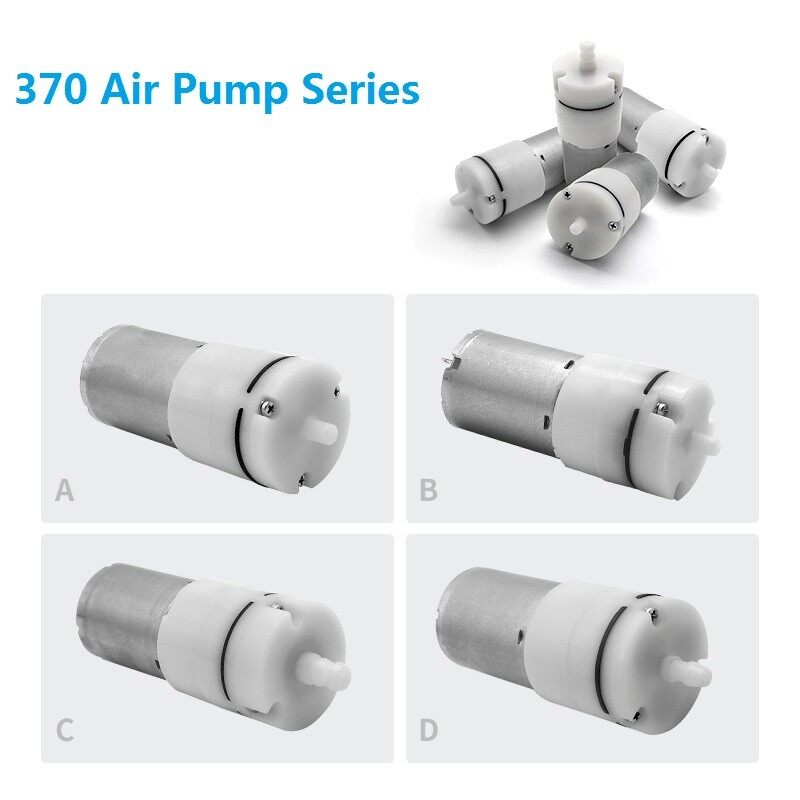

Micro Air Pump Specifications for Massage Chairs
| Product Model |
370-XC Massage chair air pump |
||||
| Rated Voltage | DC 3V | DC 6V | DC 9V | DC 12V | DC 24V |
| Rated Current | ≤900mA | ≤450mA | ≤300mA | ≤220mA | ≤110mA |
| Power | 2.4 W | 2.4 W | 2.4 W | 2.4 W | 2.4 W |
| Air Tap O.D. | Ø5.6mm | ||||
| Maximum Pressure | ≥60KPa(450mmHg) | ||||
| Air Flow | 0.5-2.5 LPM | ||||
| Inflation Time | <10s (From 0 to 300mmHg in a 500cc tank) | ||||
| Noise Level | ≤60db (30cm away) | ||||
| Life Test | ≥ 50,000 Times (ON 10s, OFF 5s) | ||||
| Leakage | <3.0mmHg/min (from 300mmHg in a 500cc tank) | ||||
| Weight | 60g | ||||
Contact Pinmotor for custom mini air pumps for massage devices. Get a fast OEM quote today.
Micro Air Pump Applications in Massage Chairs
Back and Waist Airbag Massage
The pump supplies air to the back and lumbar airbags. When inflated, the airbags press against the body for wrapping, support, and compression massage.
Arm and Shoulder Massage Modules
Small airbags in the arm and shoulder areas need repeated inflation and deflation. The micro air pump provides air for regular pressure movements.
Leg and Foot Air Compression Massage
The pump works with tubes, valves, and airbags to control air pressure in the calf, ankle, and foot areas. This supports leg wrapping and foot compression.
Massage Cushions and Compact Devices
For massage cushions and compact massage chairs, space is limited. A micro air pump can fit inside small airbag modules and supply air to the system.
Multi-Airbag Massage Systems
In multi-airbag massage chairs, the pump works with valves to send air to different zones. This allows back, waist, arm, leg, and foot airbags to inflate in sequence.
FAQ About Massage Chair Air Pumps
Frequently Asked Questions
We are your trusted mini air pump wholesaler for OEM massage devices.
Can the micro air pump be customized?
+
-
Yes. Voltage, airflow, pressure, outlet type, wire length, connector, noise level, and mounting method can be adjusted based on the device design.
Can I get samples before placing a bulk order?
+
-
Yes. Samples are available for testing tube connection, airbag inflation speed, pressure performance, noise, and installation fit.
What is the MOQ for wholesale orders?
+
-
MOQ depends on the pump type, order quantity, and customization requirements. Standard models usually support small trial orders.
What information is needed for a quotation?
+
-
Please provide voltage, airflow or pressure requirements, tube size, working cycle, application, order quantity, and any drawings or photos of the installation area.
Do you support wholesale and OEM orders?
+
-
Yes. Standard models are available for wholesale orders, and OEM customization can be arranged for massage chair, massage cushion, leg massager, and pneumatic massage equipment projects.
Certifications for Micro Air Pump Manufacturing
Our Certificate
CE Certificate of Conformity
Our products meet relevant EU compliance requirements and support applications that require CE conformity.
IATF 16949 Certificate
Our production management follows automotive industry quality standards for micro air pumps and related products.
ISO 9001 Certificate
Manufactured under a standardized quality management system covering micro motors, air pumps, and solenoid valves.
RoHS Certificate of Conformity
Meet hazardous substance restriction requirements, supporting applications with environmental and material safety standards.
