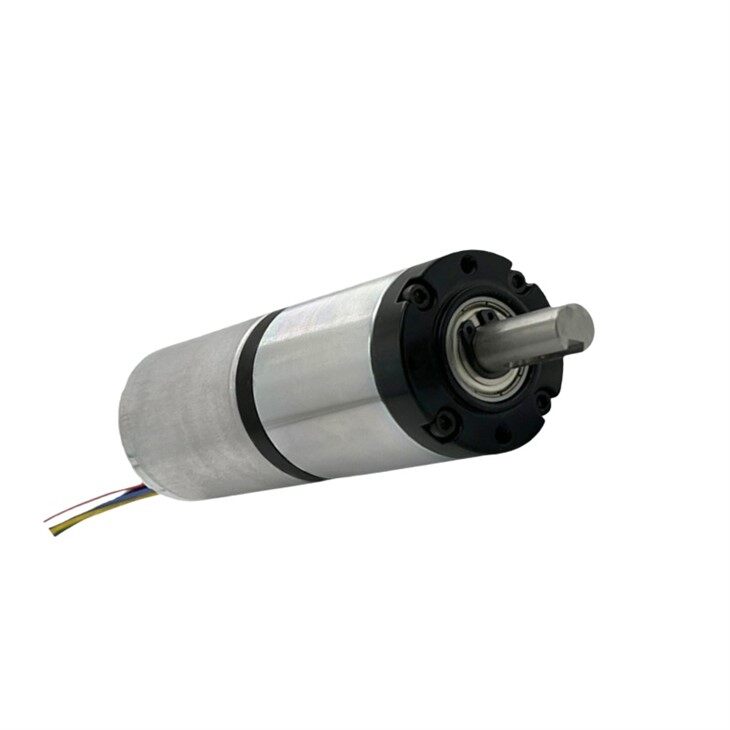

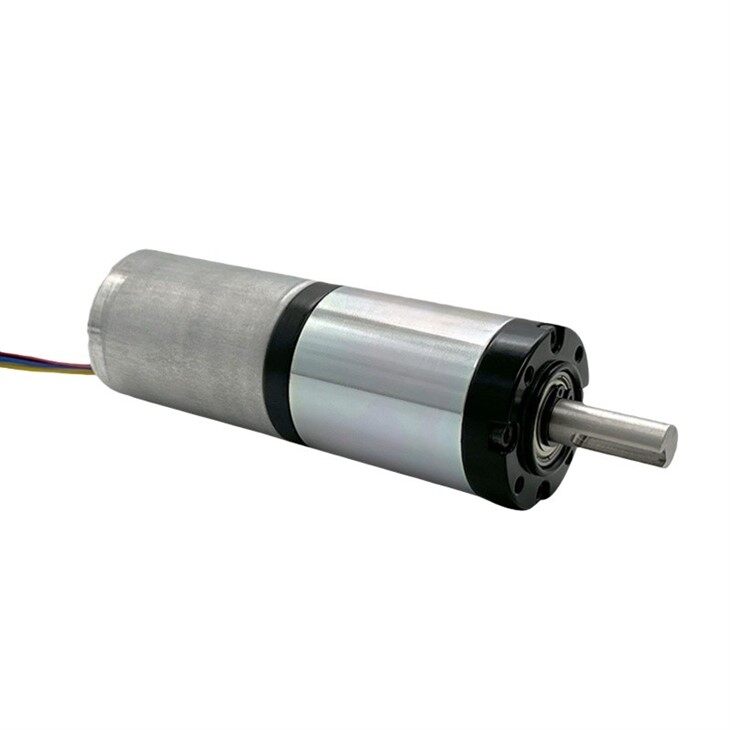

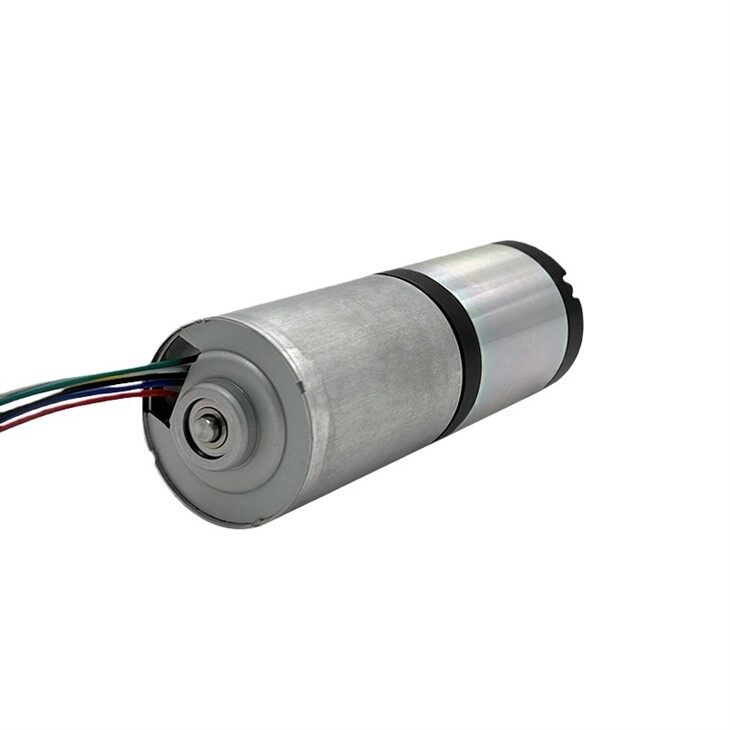

Engineered for precision and high-load stability, our 4260 series stands out with its High-Precision Planetary Gearbox and Integrated BLDC Driver. Unlike standard high-power motors, this unit focuses on delivering massive torque (up to 50kg.cm) and seamless PWM speed control in a compact 42mm frame. It is the definitive choice for Solar Trackers and AGV systems that demand intelligent motion control without the need for external controllers.
Dimension
Download PM42-BL4260 Technical Datasheet
Why Choose Our 4260 Brushless Planetary Gear Motor?
1. Industrial-Grade Torque in 42mm Frame
Our42mm BLDC Gear Motordelivers a massive 50kg.cm rated torque through a high-precision planetary gearbox. With 14 reduction ratios (from 1:3.7 to 1:625), it provides the ultimate mechanical advantage for a Solar Tracker Actuator Motor, ensuring stable positioning even under heavy wind loads.
2. Integrated Drive & Precise Control
This 24V BLDC Motor with Built-in Driver & PWM Speed Control simplifies your engineering. The 6-wire interface supports FG speed feedback and electronic braking, making it a "plug-and-play" solution for any AGV Robot Drive System requiring closed-loop accuracy without external controllers.
3. Silent Efficiency & Extreme Durability
Engineered as a Low noise brushless motor for smart home automation, the 4260 series operates whisper-quietly. The brushless design offers a 20,000+ hour lifespan, while the High Torque Low RPM Motor configuration maintains high energy efficiency (1.2A at max efficiency), perfect for 24V battery-powered applications.
4. Certified Quality You Can Trust
Every 24V Brushless DC Motor is manufactured in ISO9000 and ISO14000 certified facilities. We guarantee consistent performance parameters-from the Φ8mm D-s D-shaft precision to stall torque reliability-ensuring your project meets industrial standards every time.
Industries & Applications
| Industry Sector | Typical Applications | Recommended Ratio |
Key Requirement |
| Renewable Energy | Solar Trackers / Heliostats | 1:181 - 1:625 |
High Torque, Self-locking, Weather Resistance |
| Logistics & AGV | Warehouse Robots / AMRs | 1:18 - 1:67 |
High Payload, Fast Response, Durability |
| Smart Home | Automatic Curtains / Blinds | 1:13 - 1:25 |
Ultra-Low Noise, Integrated Speed Control |

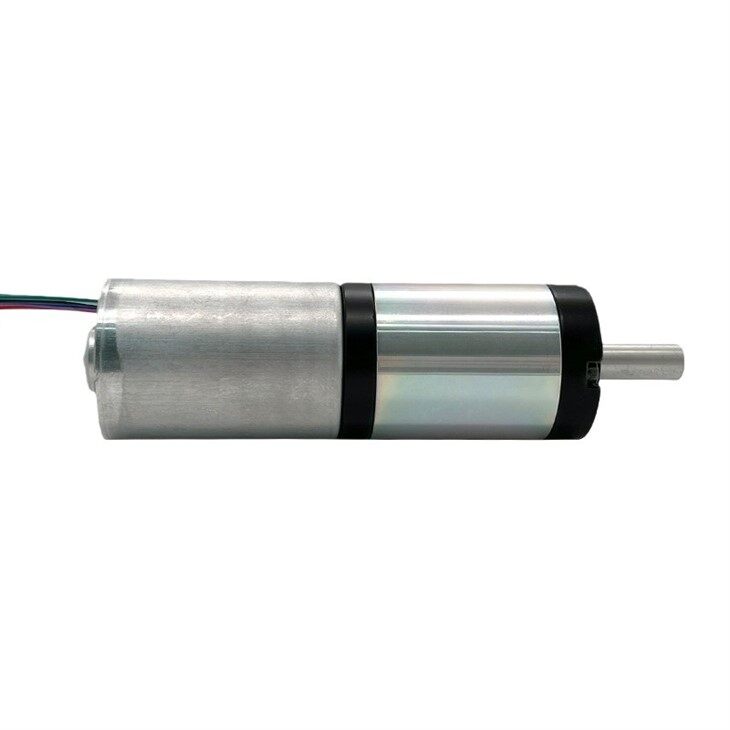

| Medical & Lab | Precision Pumps / Conveyors | 1:3.7 - 1:13 |
Smooth Rotation, Precise FG Feedback |
- Solar Tracker: Optimized for Dual-Axis Solar Tracking: The high reduction ratio of 1:625 provides the ultimate precision and holding power required for solar heliostats.
- Logistics & Robotics: The compact 42mm BLDC Gear Motor frame is perfect for AGV Robot Drive Systems, offering smooth acceleration and long-term reliability.
- Smart Environments: Designed as a Low noise brushless motor for smart home automation, it ensures whisper-quiet operation for premium motorized curtains and window openers.
- Precision Industry: This 24V BLDC Motor with Built-in Driver & PWM Speed Control simplifies the architecture of medical devices and laboratory automation systems.
Our 4260 series has been successfully deployed in dual-axis solar tracking projects in Europe and last-mile delivery robots in North America, proving its 20,000-hour reliability.

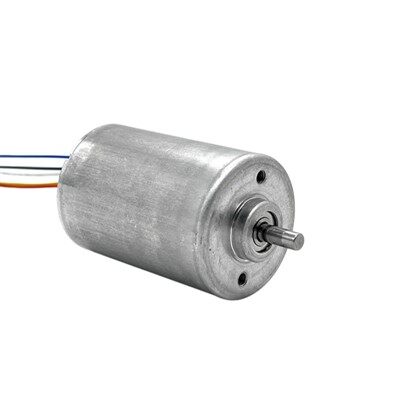

Need higher speed and 50W power for continuous pumping? View our [4260WH Industrial Series].
FAQ
Q1:How does the FG signal feedback improve precision in robotic and AGV drive systems?
A: The FG (Frequency Generator) pulse signal on the green wire provides real-time speed feedback to your controller. For an AGV Robot Drive System, this allows for closed-loop control, ensuring that multiple drive wheels rotate at the exact same synchronized speed regardless of load variations. By monitoring the FG pulse frequency, your system can calculate the precise travel distance and speed, which is critical for autonomous navigation and obstacle avoidance in warehouse automation.
Q2: What is the maximum axial and radial load capacity for the 42mm Brushless Planetary Gear Motor?
A: Our 42mm BLDC Gear Motor is equipped with a high-strength planetary gearbox designed to withstand significant mechanical stress. For high-torque applications like a Solar Tracker Actuator Motor, the internal dual ball-bearing structure supports higher radial loads compared to standard motors. However, to ensure a 20,000+ hour lifespan, we recommend keeping the radial load under 5kg and axial load under 2kg. For heavier eccentric loads, we suggest using an external coupling to protect the Φ8mm D-shaft from premature fatigue.
Q3: Can this High Torque Low RPM Motor be customized for extreme temperature environments?
A: Yes, while the standard operating range for the Brushless Planetary Gearmotor is -10°C to +60°C, we offer customization for specialized industrial needs. For outdoor solar tracking in extreme climates or cold storage logistics, we can provide low-temperature lubricants and industrial-grade electronic components for the 24V BLDC Motor with Built-in Driver. This ensures the internal driver remains stable and the planetary gears maintain high efficiency without grease solidification, guaranteeing reliable performance from -40°C to +85°C.Contact our engineering team for customized solutions.
