why choose our Best massager pneumatic valve
Pinmotor - global micro pump and valve supplier for reliable fluid control solutions and engineering partnership.
Integrated 4-valve structure
The valve integrates four independent valve units into one module. Internal routing is combined, and external connection points are reduced.
- In the device, this structure reduces internal space usage. It also reduces the number of parts and assembly steps, which lowers manufacturing and assembly workload.
One-way fast exhaust
The valve uses a one-way exhaust structure. When the control signal is applied, the valve core opens the exhaust path, and air in the airbag is released quickly.
- This allows faster switching between inflation and deflation. Pressure delay is reduced, and the airbag can complete expansion and release in a shorter time.
Copper body structure
The valve body is made of copper and processed with precision machining to control internal fit and sealing. The structure also reduces airflow disturbance and mechanical vibration during movement.
- This helps the valve maintain stable operation over long use and reduces noise during switching.

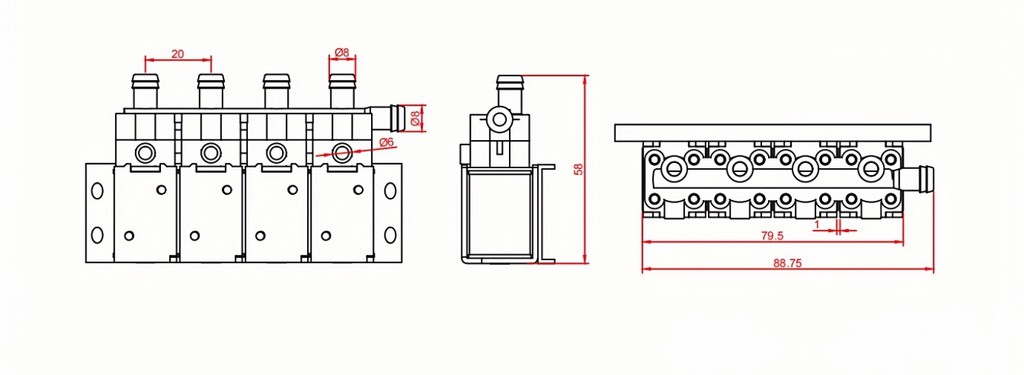

Products parameters
| Product model |
PYF3-4LZB Best massager pneumatic valve |
||
|---|---|---|---|
| Rated Voltage | DC 12V | DC 24V | |
| Rated Current | 184±10% mA | 100±10% mA | |
| DC Resistance | 65±10%Ω | 240±10%Ω | |
| Power | 2.21W | 2.4W | |
| Air Tap O.D. | Ø 8.0mm | ||
| Maximum Pressure | 46Kpa 350mmHg | ||
| Medium | Air | ||
| Exhaust Speed | < 4s (from 350mmHg to 15mmHg in a 1500cc tank) | ||
| Life Test | ≥ 180,000 times (ON 5s, OFF 5s) | ||
| Leakage | < 15mmHg/min | ||
| Operation Temperature | 5-45°C 30% to 85% | ||
As a leading massager pneumatic valve suppliers, Pinmotor provides high-precision solutions like the PYF3-4LZB.
Contact us for the best 4-way solenoid valve manifold pricing.
Key Applications
Massage chairs and massage mats
The valve controls inflation and deflation of multiple air chambers. It switches air paths to drive kneading and pressing movements. Pressure changes are controlled by switching between open and closed states. Noise output is managed during operation.
- Value: Air chambers produce continuous motion patterns. Users experience a full massage process with lower background noise.
01
Hand and foot massagers
The valve controls pressure in hand and foot air chambers. Air paths are switched between zones to create local compression and release for pressure-point and rolling movements. The valve structure fits compact layouts.
- Value: Pressure is applied to hands and feet. The device size is reduced, suitable for portable and daily use.
02
Eye massagers
The valve outputs low-flow air and controls inflation and deflation cycles in eye air chambers. Operating noise is reduced by structure design.
- Value: Low pressure is applied around the eye area with limited external disturbance.
03
Neck and waist massagers
The valve controls air pressure and timing of inflation and deflation in air chambers. This produces pressure changes for support, traction, or intermittent compression in neck and waist structures.
- Value: Used for pressure control in neck and waist areas. Suitable for long-time operation.
04
