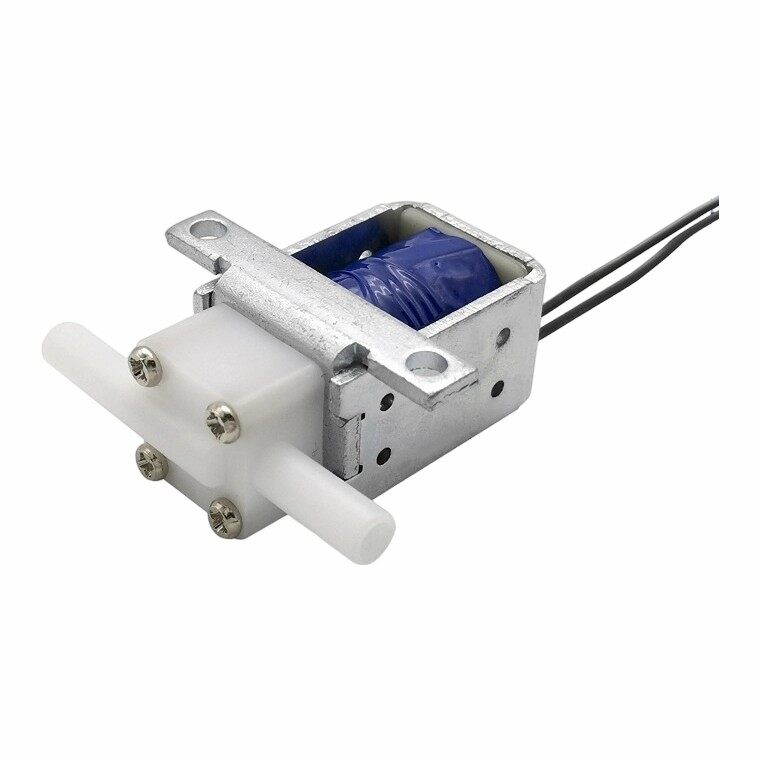

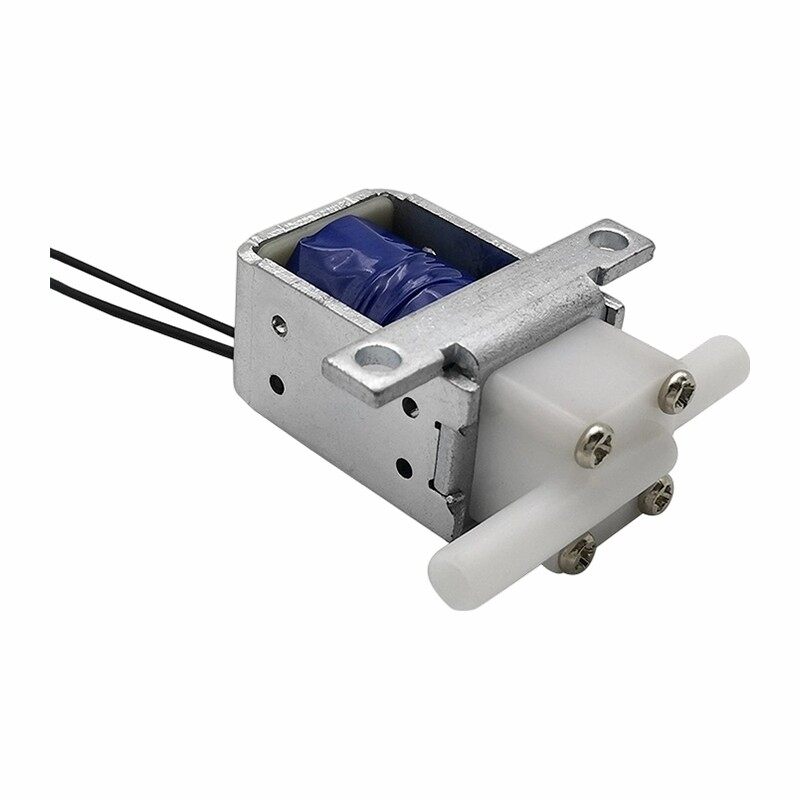

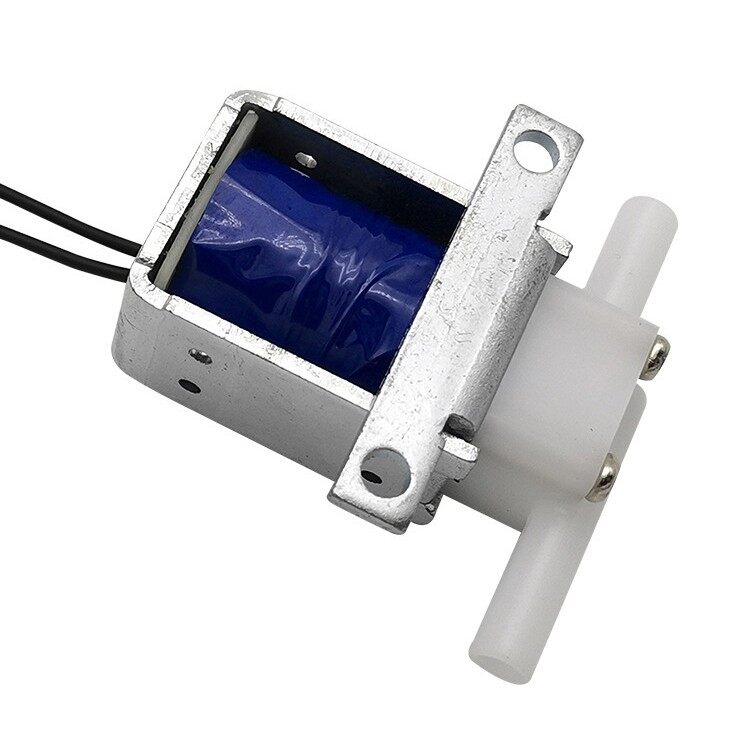

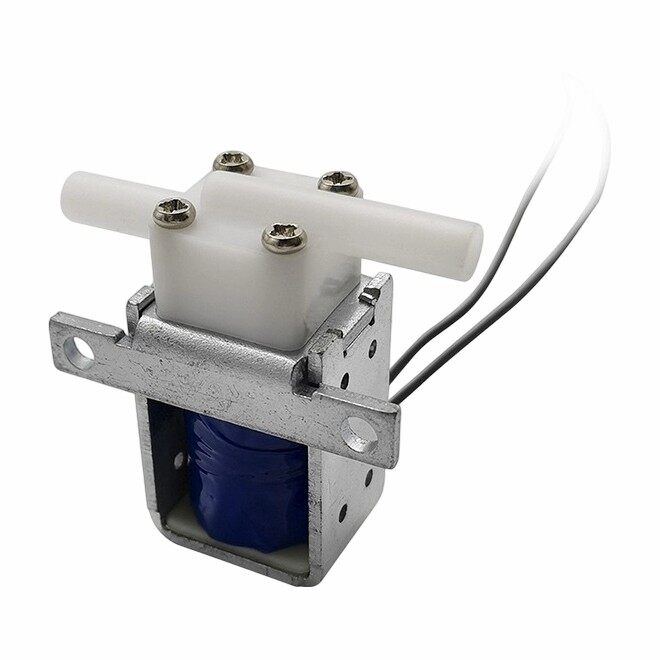

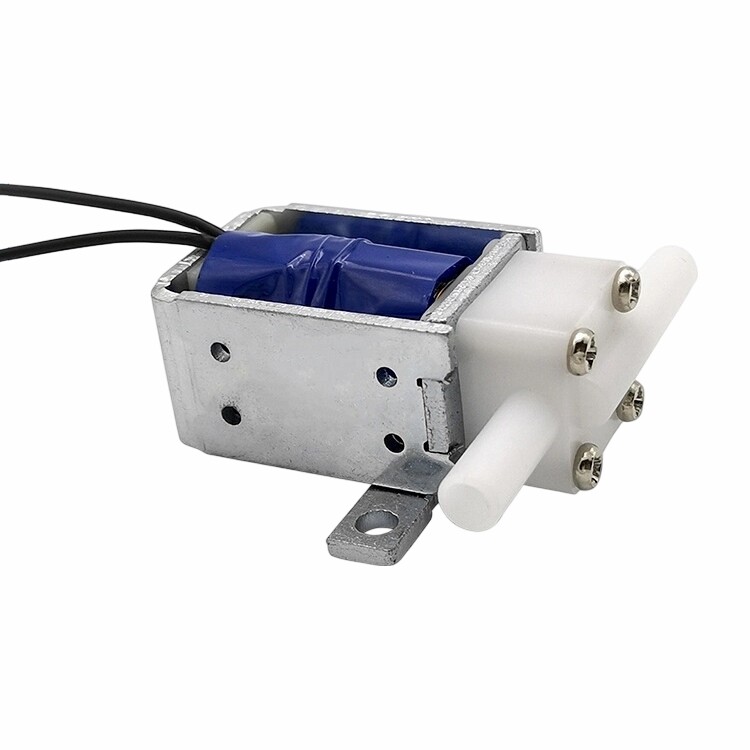

This 2 way mini solenoid valve 12V delivers reliable performance across multiple voltage versions (3.7V-24V DC). With compact dimensions and extended service life, it maintains stable operation across varying temperatures while generating minimal noise. The valve's durable construction ensures consistent fluid control in medical devices, automated machinery, and massage equipment.
Engineered for versatile integration, this efficient 12V solenoid valve supports diverse applications from industrial automation to consumer products. Its multi-voltage compatibility and compact footprint make it suitable for space-constrained installations. As a precision mini solenoid water valve, it provides dependable flow control in both liquid and pneumatic systems requiring quiet, long-lasting operation.
Dimension
| Product Model | PYF2-XG | ||
| Rated Voltage | DC 6V | DC 12V | DC 24V |
| Rated Current | 300 ± 10%mA | 240 ± 10%mA | 240 ± 10%mA |
| DC Resistance | 20 ± 10%Ω | 50 ± 10%Ω | 100 ± 10%Ω |
| Power | 1.8 W | 2.88 W | 5.76 W |
| Air Tap O.D. | Ø6.5mm | ||
| Maximum Pressure | 100KPa(14.5Psi) | ||
| Medium | Water | ||
| Exhaust Speed | 1.0L/Min | ||
| Life Test | ≥ 200,000 Times (ON 5s, OFF 5s) | ||
| Leakage | <10 mmHg/min (under 300 mmHg in a 100cc tank) | ||
| Operation Temperature | 0 ~50°C 30% to 85%RH | ||
| Type | Normally Closed | ||
| Weight | 100g | ||
Description
Weighing only 100g, the 2 way mini solenoid valve 12v from Pincheng Factory delivers reliable performance in fluid management applications. Engineered for space-constrained designs, this component is ideal for integration into compact home appliances and professional beauty equipment requiring precise liquid regulation.
Supporting multiple voltage inputs from DC 6V to 24V, this versatile mini solenoid water valve maintains stable operation at 2.88W power consumption while handling pressures up to 100KPa. Its Ø6.5mm fluid port and 1.0L/min flow capacity make it particularly suitable for automated beverage dispensers and smart water distribution systems.
Specifically developed for environmental control applications, the Dehumidifier Solenoid Water Valve variant ensures dependable drainage in commercial humidity management equipment and industrial drying installations. Certified for 200,000+ operational cycles, Pincheng Factory provides customized solutions for OEM water control systems and appliance manufacturing partners, offering tailored connector configurations and pressure specifications for volume B2B projects.
What Is The Difference Between A 2 Way And 3 Way Solenoid Valve?
The fundamental distinction between these valve configurations lies in their flow path management capabilities, which directly dictates their respective roles in fluid control systems.
A 2-way solenoid valve functions as an automated shut-off device within a single flow path. Featuring two ports (inlet and outlet), its operation is binary: when energized, the internal plunger lifts to create an open flow channel; when de-energized, a spring or permanent seal returns it to a closed position, completely blocking fluid transmission. This makes it ideal for basic on/off control in applications like irrigation systems, chemical dosing units, and emergency shut-off circuits.
In contrast, a 3-way solenoid valve operates as a flow diversion device with three ports (typically one common, one normally open/NO, and one normally closed/NC). Its core function is to redirect flow between two alternative pathways. In its default state (de-energized), fluid passes between the common and NO ports. When energized, the internal mechanism shifts to block the NO path and opens a connection between the common and NC ports. This versatile functionality enables complex operations such as alternating between two fluid sources, directing flow to different actuators, or facilitating pressure exhaust cycles in pneumatic systems.
The 2-way valve's simplicity makes it ubiquitous in applications requiring straightforward flow isolation-from beverage dispenser controls to compressed air line management. Its compact design and cost-effectiveness position it as the standard solution for single-path fluid control.
The 3-way valve's advanced functionality supports more dynamic system requirements. In medical analyzers, it precisely switches between reagents and cleaning solutions. In HVAC systems, it modulates coolant flow between heat exchangers. Industrial automation employs these valves to control double-acting cylinders, where they alternately apply and release air pressure to different cylinder chambers. This multi-path capability makes 3-way valves indispensable for processes requiring selection, alternation, or complex sequencing that cannot be achieved with simple on/off control.
Understanding this functional dichotomy enables engineers to select the appropriate valve architecture-whether for basic flow interruption or sophisticated flow direction-ensuring both operational efficiency and system reliability.
